Tell your friends about us!Bracket to fit GX100 on the bicycle handle bar
- Thread starter forward
- Start date
marky
New Member
Hey forward i was thinking about this today!....ok i think you (we) need to fit the camera to a tripod head and fit this to the bracket that holds a light....it has to be tight and secure because you dont want to drop £400 of camera on the road, or else we could attach it to a helmet and use a cable release....Hmmmmmm....what do you think?........next months contest?......fotos from a bike?...pavel?
marky
New Member

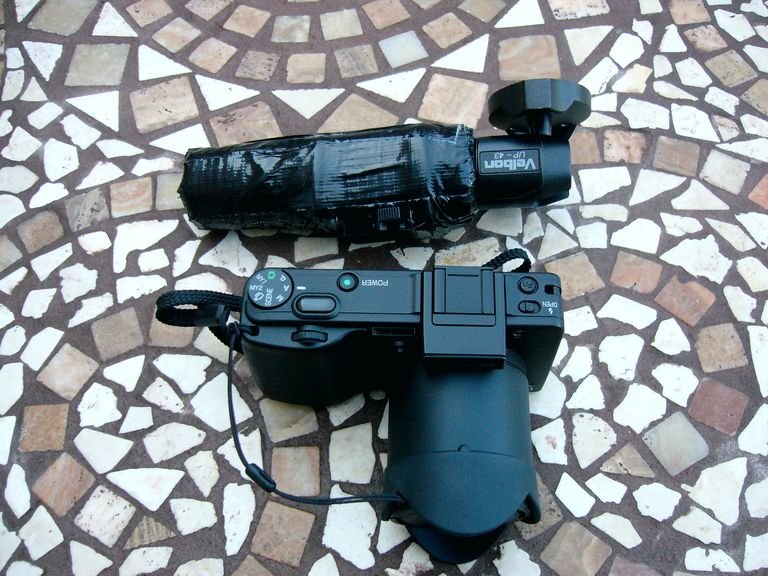

Ok...i made 1!!!!!
I used a old monopod that i bought about 6 years ago...and never used!, a hacksaw, some electrical tape,a file, a light from my bike which was broken and some Super Glue.

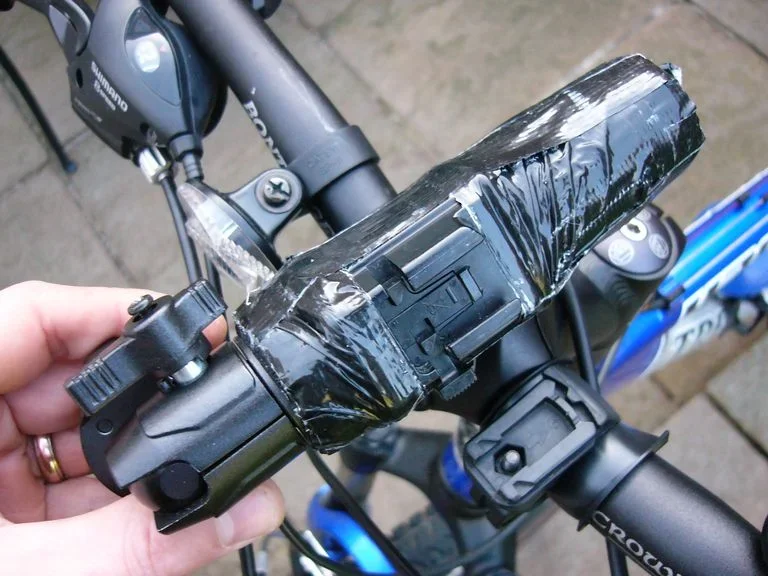

I removed the battery cover from the light and hacksawed off the front and the back from the light so only the battery compertment with the bracket for the handle bar remains, next i cut the battery cover the same size, then i filed down all of the edges so they where smooth. i was left with only a hollow tube(the battrey cover and the remainder of the light) which would fit onto the handle bar fitting.
Next i rolled back the foam handle at the top of the monopod and cut off the leg from the monopod so i only had the half of the "handle" left....i filed down the sharp edges and rolled the foam back and tucked it into the hole at the end.
I made sure the monopod would fit tight and snug into the shell of the light (the foam handle helped to keep it secure) i needed to file away some of the interior of the battery housing.
Next i glued the battery cover in place with the monopod inside. When the glue was dry I tapped up the cover very tightly at both ends, then i wrapped up the rest of the housing, after that i wrapped up the rest of the assembly so it is tight and very secure.....
it was really simple to make and took about 1 hour once i had everything at hand......next job....get out and use it
I used a old monopod that i bought about 6 years ago...and never used!, a hacksaw, some electrical tape,a file, a light from my bike which was broken and some Super Glue.
I removed the battery cover from the light and hacksawed off the front and the back from the light so only the battery compertment with the bracket for the handle bar remains, next i cut the battery cover the same size, then i filed down all of the edges so they where smooth. i was left with only a hollow tube(the battrey cover and the remainder of the light) which would fit onto the handle bar fitting.
Next i rolled back the foam handle at the top of the monopod and cut off the leg from the monopod so i only had the half of the "handle" left....i filed down the sharp edges and rolled the foam back and tucked it into the hole at the end.
I made sure the monopod would fit tight and snug into the shell of the light (the foam handle helped to keep it secure) i needed to file away some of the interior of the battery housing.
Next i glued the battery cover in place with the monopod inside. When the glue was dry I tapped up the cover very tightly at both ends, then i wrapped up the rest of the housing, after that i wrapped up the rest of the assembly so it is tight and very secure.....
it was really simple to make and took about 1 hour once i had everything at hand......next job....get out and use it
Attachments
globalnomadic
New Member
I'm not sure if you are all sorted now, but I thought I would post this for anyone else interested.
Feisol make a handle bar mount that sits the camera just in front of the bars. I have posted a photo below and the web site for you to check it out. There are two different handle bar sizes for the mount, 25.4 and 31.8. Hope that helps.
http://www.feisoleurope.com/feisol-bicycle-mount-p-65.html?osCsid=89aec3027252aca59fcd54e9a1420026
By the way are you using this for time lapse, that was my intention. Should come up with some great videos and or photos.
Feisol make a handle bar mount that sits the camera just in front of the bars. I have posted a photo below and the web site for you to check it out. There are two different handle bar sizes for the mount, 25.4 and 31.8. Hope that helps.
http://www.feisoleurope.com/feisol-bicycle-mount-p-65.html?osCsid=89aec3027252aca59fcd54e9a1420026
By the way are you using this for time lapse, that was my intention. Should come up with some great videos and or photos.
odklizec
PK
One more bicycle (but not only for bicycle) camera mount:
http://translate.google.com/translate?u ... n&ie=UTF-8
Here is the official page with installation instructions and some more photos:
http://direct.sanwa.co.jp/ItemPage/200-CAM008
BTW, it's quite funny to see CX1 mounted on this device. Why not Canon or Panasonic? It seems Ricoh cameras are really popular in Japan?
http://translate.google.com/translate?u ... n&ie=UTF-8
Here is the official page with installation instructions and some more photos:
http://direct.sanwa.co.jp/ItemPage/200-CAM008
BTW, it's quite funny to see CX1 mounted on this device. Why not Canon or Panasonic? It seems Ricoh cameras are really popular in Japan?
